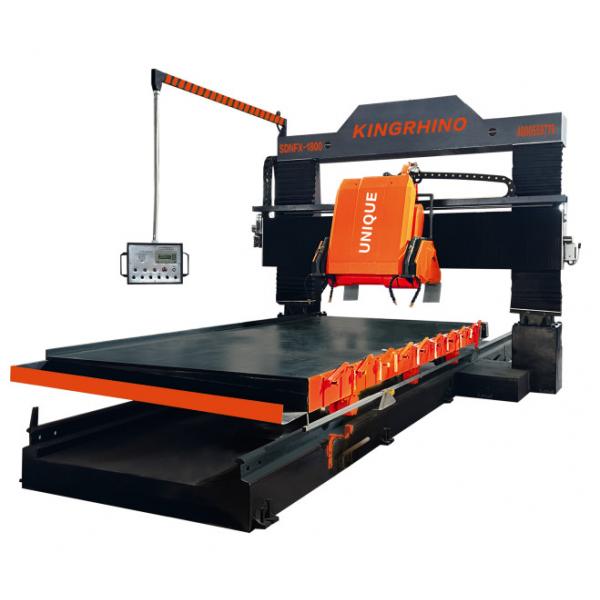

CNC Stone Gantry Profiling Linear Cutting Machine 1000mm

Name: CNC Stone Gantry Profiling Linear Cutting Machine 1000mm
Brand: Xianda Machinery
Price: 1 USD

Supply Ability : 1000 Sets/Year

Trolley Size : 1300*3000mm/1400*3500mm

Cutting Method : Laser

Cutting Accuracy : High

Model No : LCMM-1300/1800

Max Cutting Diameter : 2500mm

Usage : Granite

Maintenance : Easy

Safety Protection : High

Max Cutting Height : 1150mm

Blade Diameter Range : 400-600mm

Max Cutting Depth : 150mm

Operation Mode : Automatic

Power Source : Electric

Brand Name : Xianda Machinery

Model Number : SDNFX-1800

Place of Origin : Jinjiang, Fujian, China

MOQ : 1

Price : To Be Negotiable

Payment Terms : L/C, T/T

Packaging Details : Plastic Package, Suitable for Sea Transportation.

Certification : ISO

Model NO. : SDNFX-1800

Cutting Ability : High Speed

Control : PLC

Use for : Linear Profiling,Balustrade Cutting

Blade Diameter : 300-600mm

Max Lifting Travel of Cutting Frame : 1000mm

Worktable Diamension : 3500X1800mm

Main Motor : 15kw

Gross Motor : 20kw

Gross Weight : 7000kg

Water Consumption : 6m³/H

Specification : 6000x3600x3300mm

Trademark : UNIQUE

Origin : Fujian, China

HS Code : 84641090

Warranty : 12 Months

Type : Bridge Cutting Machine

Application : Machinery & Hardware

Source Voltage : 380V

Automation : Automatic

Customization : Available | Customized Request

Contact Now

CNC Stone Gantry Profiling Linear Cutting Machine 1000mm

Product Specifications

Attribute	Value
Model NO.	SDNFX-1800
Cutting Ability	High Speed
Control	PLC
Use for	Linear Profiling, Balustrade Cutting
Blade Diameter	300-600mm
Max Lifting Travel of Cutting Frame	1000mm
Worktable Dimension	3500×1800mm
Main Motor	15kw
Gross Motor	20kw
Gross Weight	7000kg
Water Consumption	6m³/H
Specification	6000×3600×3300mm
Trademark	UNIQUE
Origin	Fujian, China
HS Code	84641090
Supply Ability	1000 Sets/Year
Warranty	12 Months

Technical Description

The SDNFX-1800 CNC Stone Gantry Profiling Linear Cutting Machine features computer-controlled profiling lines with a robust gantry structure. It automatically tracks models of curved or straight lines through a fiber optic probe, then uses diamond circular saws to precisely cut stone materials according to the programmed patterns.

Key features include inverter-controlled vertical and horizontal movement with adjustable speed based on material requirements, PLC system for high automation, and dual-blade design for enhanced cutting efficiency and stability. Ideal for creating lines, arc-shaped patterns, Roman columns, and other architectural elements.

Technical Parameters

Parameter	Unit	SDNFX-1800
Blade diameter	mm	φ300-φ600
Max lifting travel of cutting frame	mm	1000
Worktable dimension	mm	3500×1800
Main motor	kw	15
Gross motor	kw	20
Outline dimension	mm	6000×3600×3300
Gross weight	kg	7000
Water consumption	m³/h	6

Certifications

CNC Stone Gantry Profiling Linear Cutting Machine 1000mm

Our Services

Machine testing videos available and strict quality inspection before shipment

32 years manufacturing experience with over 70% market share in China for special shape stone cutting machines

Top 5 manufacturer with ISO & CE certification

Global distribution to over 20 countries with 10+ years international experience

Competitive pricing and volume discounts available

24/7 after-sales support with professional installation guidance and operator training

Frequently Asked Questions

Does this product support customization?

Yes, we offer customization options to meet specific requirements.

How do you ship the products?

Products are carefully packaged and shipped via sea freight for international orders.

What is the warranty for the product?

This machine comes with a 12-month warranty against manufacturing defects.

For any additional questions, our team will respond promptly to your inquiries.
