Brand Name : Xianda Machinery
Model Number : ACM-2515-1Q
Certification : CE certificate ,SGS, ISO9001
Place of Origin : Jinjiang, Fujian, China
MOQ : 1
Price : To Be Negotiable
Payment Terms : L/C, D/A, D/P, T/T
Supply Ability : 1000 Sets/Year
Dimension of worktable : 2500*1500mm
Feed height : ≤650mm
Air speed : 13m/min
Number of spindles : 1pcs
Spindle Power : 7.5kw
Outline dimension : 3700*2410*3500mm
Water consumotion : 1M3/h
Spindle type : 1 Tilting head

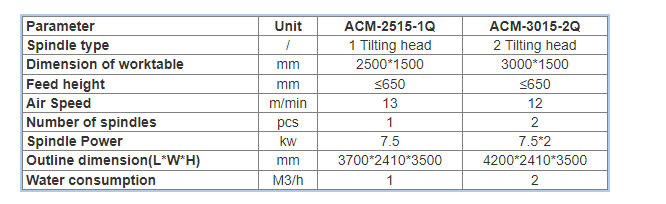

| Attribute | Value |
|---|---|
| Dimension of worktable | 2500*1500mm |
| Feed height | ≤650mm |
| Air speed | 13m/min |
| Number of spindles | 1pcs |
| Spindle Power | 7.5kw |
| Outline dimension | 3700*2410*3500mm |
| Water consumption | 1M3/h |
| Spindle type | 1 Tilting head |

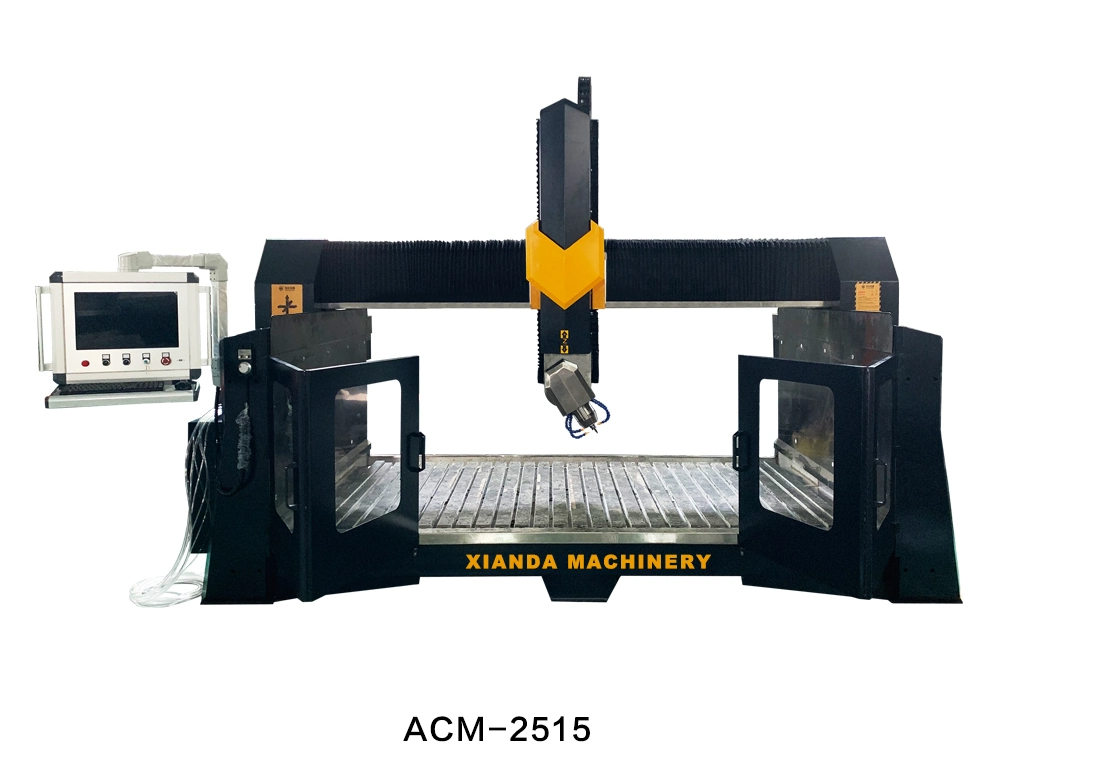

CNC Carving Machine Stone Cutting Machine Xianda Machinery

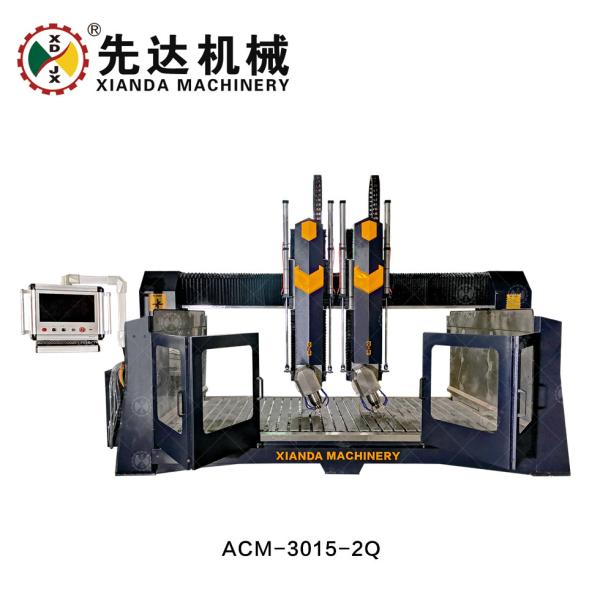

ACM-2515-1Q ACM-3015-2Q

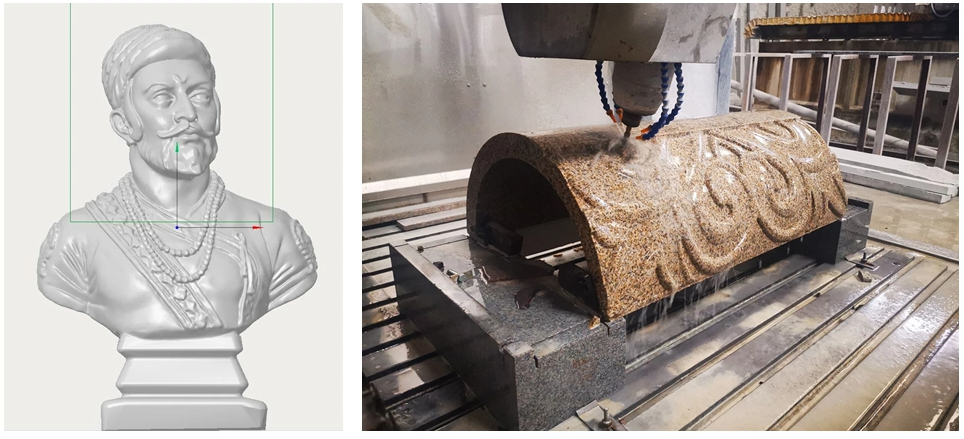

Fujian Xianda ACM-2515-1Q, This machine adopts numerical control system, four-axis linkage, double row four-row slider, constant power spindle motor, two-way tool cooling system, with stable running, high precision and high efficiency advantages, suitable for processing marble, granite, bluestone, jade, agate, copper plate and aluminum plate and other materials.
Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine, wire saw stone cutting machine, block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company, we have passed the ISO9001 verifying, CE, and won many honorary titles include International Gold Plant Quality Award etc. We keep "Advanced Technology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.
|
|
CNC 4 Axis Arc Slab & Column Carving Machine (TERRY) Images |
